Nickel Alloy 205

Nickel 205 alloy is a wrought nickel alloy with properties similar to that of nickel 200 alloy. It exhibits excellent mechanical, electrical, and corrosion-resistant properties and good oxidation resistance.

The alloy is ferromagnetic below 360°C (680°F), and contains small additions of aluminum and titanium for a good combination of mechanical and electrical properties.

Nickel 205 is a wrought nickel similar to Nickel 200 but with compositional adjustments to enhance the performance in electronic applications. It is most commonly used for the anodes and grids of electronic valves, magnetostrictive transducers, lead wires, transistor…

Category:
Chemical Composition Limits
Weight% Ni Mg Ti Cu Fe C Si S Mn
Nickel 205 99.0 min 0.01 – 0.08 0.01 – 0.05 0.15 max 0.20 max 0.15 max 0.15 max 0.008 max 0.35 max

Typical Mechanical Properties

Material Tensile Strength Yield Strength (0.2% Offset) Elongation in 2″

(%)
MPa psi MPa PSI
Nickel 205 50,000 345 13,000 90 45

Mechanical Properties in the Annealed Condition

Availability

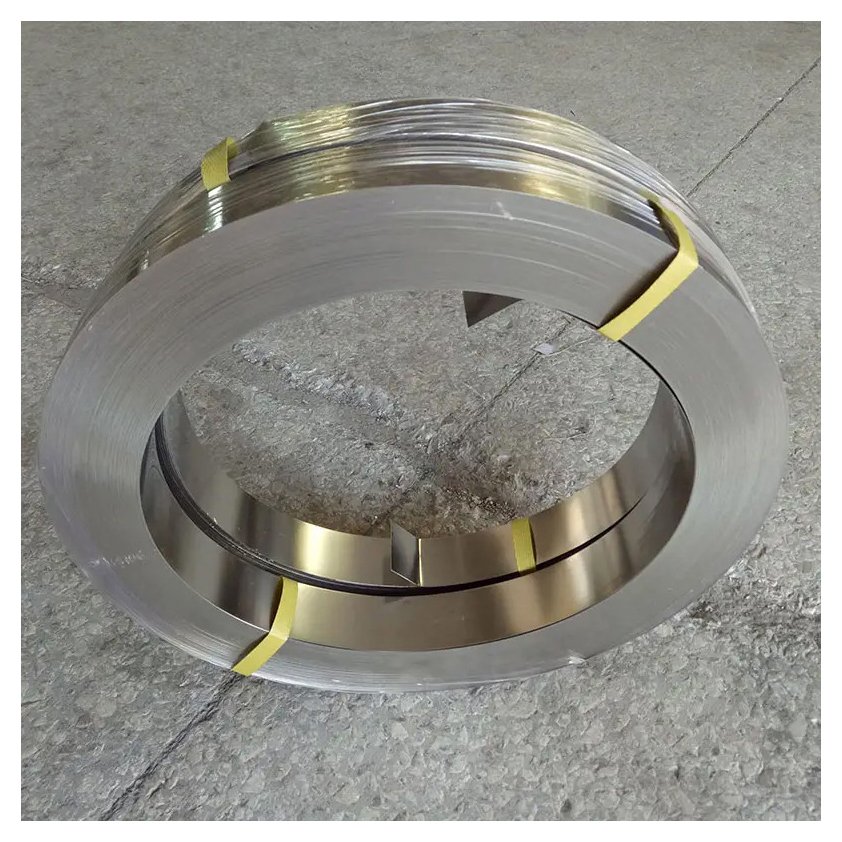

Nickel 205 (UNS N02205) is available in Sheet, Strip, and Wire.

Specifications
UNS N02201
BS 3072, BS 3073, BS 3074, BS 3075 and BS 3076 (NA12)
ASTM B160, ASTM B162, ASTM B 163, ASTM B 725 and ASTM B 730
SAE AMS 5553 Sheet, Strip
ASME SB-160, ASME SB-163 and Boiler Code Sections III, VIII, IV
DIN 17740, 17750, 17751, 17752, 17753 and 17754
Werkstoff Nr. 2.4061 and WS2.4068
