Nickel Alloy 825 | Zhonghe steel

Nickel Alloy 825

INCOLOY alloy 825 (UNS N08825/W.Nr. 2.4858) is a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium. The alloy’s chemical composition, given in Table 1, is designed to provide exceptional resistance to many corrosive environments. The nickel content is sufficient for resistance to chloride-ion stress-corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives outstanding resistance to reducing environments such as those containing sulfuric and phosphoric acids. The molybdenum also aids resistance to pitting and crevice corrosion. The alloy’s chromium content confers resistance to a variety of oxidizing substances such as nitric acid, nitrates and oxidizing salt. The titanium addition serves, with an appropriate heat treatment, to stabilize the alloy against sensitization to intergranular corrosion.

Category:

Nickel Alloy 825

The resistance of INCOLOY alloy 825 to general and localized corrosion under diverse conditions gives the alloy broad usefulness. Applications include chemical processing, pollution control, oil and gas recovery, acid production, pickling operations, nuclear fuel reprocessing, and handling of radioactive wastes. Applications for alloy 825 are similar to those for INCOLOY alloy 020.

Weight % Ni Fe Cr Mo Cu Ti C Mn S Si Al
Alloy 825 38 – 46 22 min 19.5 – 23.5 2.5 – 3.5 1.5 – 3 0.6 – 1.2 0.05 max 1 max 0.03 max 0.5 max 0.2 max

Mechanical Properties

Material Form and Condition Tensile Strength MPa Yield Strength (0.2% Offset) MPa Elongation (%)
Alloy 825 Tube Annealed 772 441 36
Alloy 825 Tube Cold Drawn 1000 889 15
Alloy 825 Bar Annealed 690 324 45
Alloy 825 Plate Annealed 662 338 45
Alloy 825 Sheet Annealed 758 421 39

Corrosion Resistance

The outstanding attribute of INCOLOY alloy 825 is its high level of corrosion resistance. In both reducing and oxidizing environments, the alloy resists general corrosion, pitting, crevice corrosion, intergranular corrosion, and stress-corrosion cracking. Some environments in which INCOLOY alloy 825 is particularly useful are sulfuric acid, phosphoric acid, sulfur-containing flue gases, sour gas and oil wells, and seawater.

Available Products and Specifications

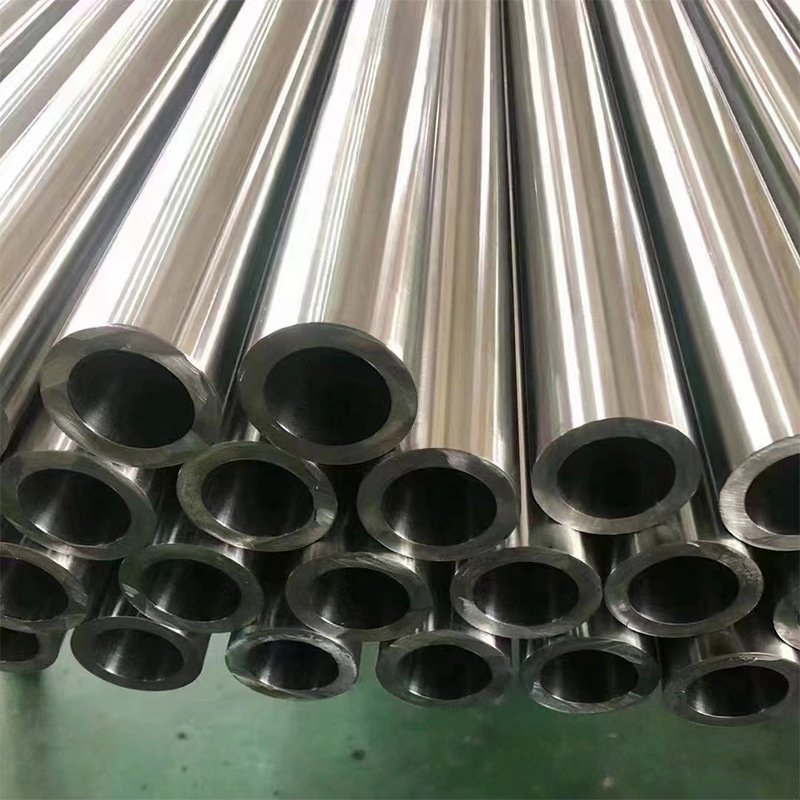

INCOLOY Alloy 825 is designated as UNS N08825 and Werkstoff Number 2.4858. It is listed in NACE MR0175 for oil and gas service. Alloy 825 is available as pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire.

Rod, Bar, Wire and Forging Stock – BS 3076NA16, ASTM B 425, ASTM B 564, ASME SB 425, ASME SB 564, ASME Code Case N-572, DIN 17752, DIN 17753, DIN 17754, VdTÜV 432, ISO 9723, ISO 9724, ISO 9725

Plate, Sheet and Strip – BS 3072NA16, BS 3073NA16, ASTM B 424, ASTM B 906, ASME SB 424, ASME SB 906, DIN 17750, VdTÜV 432, ISO 6208

Pipe and Tube – BS 3074NA16, ASTM B 163, ASTM B 423, ASTM B 704, ASTM B 705, ASTM B 751, ASTM B 775, ASTM B 829, ASME SB 163, ASME SB 423, ASME SB 704, ASME SB 705, ASME SB 751, ASME SB 775, ASME SB 829, ASME Code Case 1936, DIN 17751, VdTÜV 432, ISO 6207

Others – ASTM B 366, ASME SB 366, DIN 17744
