AWS ER80S-D2 is a specification for a type of steel filler wire used in welding. The “ER” stands for “electrode or rod,” the “80” indicates the minimum tensile strength of the weld metal in thousands of pounds per square inch (psi), and the “S” indicates that it is a solid wire. The “D2” at the end of the specification indicates that the filler wire is designed for use in the shielded metal arc welding (SMAW) process, also known as “stick welding.”
In addition to a significant amount of silicon and manganese, this wire contains a 0.50% molybdenum alloy to produce welds with high ductility, excellent impact values, and tensile strength.
Typical Applications
Strength requirements after stress relief
ASTM A182, A217, A234, and A335 – High-temperature service pipes, fittings, flanges, and valves
ASTM A336 Pressure vessel forgings
Welding positions
All
Protective Gas
100% Argon
AWS ER80S-D2 – Characteristics
(1) This product contains 0.5% Mo to provide higher deposit strength in both the as welded and stress relived conditions. It contains high levels of Manganese and Silicon to provide good wetting and good rust and scale tolerance.
(2) This product is also used for all position welding of high tensile pipe and tubing commonly found in earthmoving and construction equipment.It is available in forms suitable for MIG welding.
AWS ER80S-D2 – One chemical composition of the weld metal sample (wt%)
| C | Si | Mn | P | S | Mo |
| 0.08 | 0.55 | 1.70 | 0.010 | 0.008 | 0.40 |
AWS ER80S-D2 – One mechanical properties of the weld metal sample
（Shielding Gas: CO2）
| Tensild Strength MPa |
Yield Strength MPa |
Elongation % |
Impact Energy Value | |
| ℃ | J | |||
| 540 | 615 | 23 | -30 | 110 |

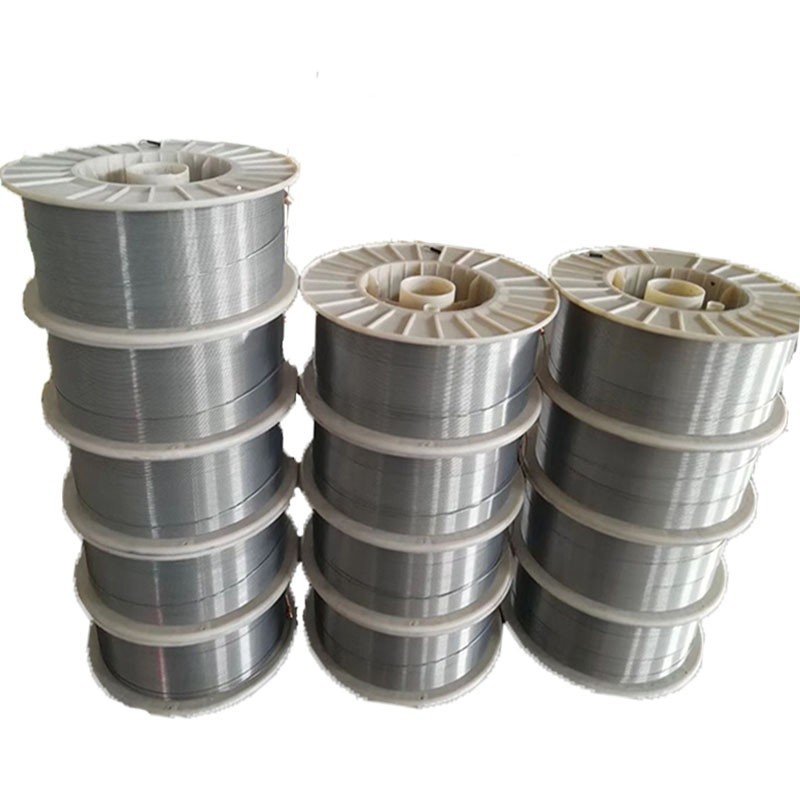

AWS ER80S-D2 Non-Copper Coated Welding Wire – Manufacturer
Zhonghe Steel (Tianjin) Co., Ltd, mainly produces high-strength steel welding wire, Non-copper-coated solid wire, submerged arc & stainless steel welding wire. Our products are widely applied to the welding of low-alloy high tensile large & key steel structures in coal machinery, construction machinery, petrochemical machinery, pressure vessels or tanks, oil & gas pipelines, military industry, shipbuilding, bridge, and high-rise buildings, etc. At the same time, we are the only enterprise in the domestic which produces welding wire as well as welding wire equipment.
